Graphical Representation of Biomolecules

Antiparallel beta-sheet

This binder-protein conjugate contains several sections of antiparallel β-sheet, a common motif, represented in the cartoon mode by flat yellow arrows which indicate the N-to-C-to-C direction of the residues involved. To see the small molecule bound inside the protein, choose Trace from the Style menu followed by zoom in for closer view.

sialdiase binder molecule

CPK colour key
new resizable window

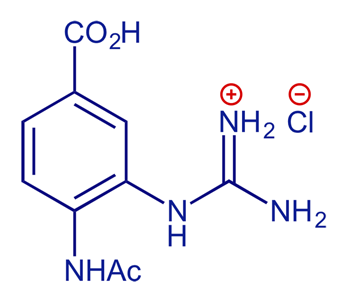

Structure-based inhibitors of influenza virus sialidase. A benzoic acid lead with novel interaction. [PDB structure code 1INF]
S. Singh, M. J. Jedrzejas, G. M. Air, M. Luo, W. G. Laver and W. J. Brouillette, J. Med. Chem., 1995, 38, 3217–3225
